ReeR - 48 Inch - 14 MOS - USED - Float Blanking Available - Light Curtain

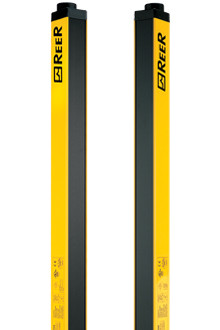

Light Curtain Transmitter & Receiver Pair

• 48 inch - USED

• 14mm MOS, with blanking function hard wire (optional switch) selectable
• 5 modes: 1, 2 or 3 beams without compulsory object presence 1 or 2 beams with compulsory object presence
• Selectable 2 M or 5 M Maximum Range
• Power - 24 VDC - 2W Emitter - 3W Receiver
• Safety Outputs - 2 PNP-500 mA @ 24 VDC
• Response Time - 19 MS
• Start/Restart Interlock and EDM via External Interface
• Seven-Segment Display and LEDs for Status and Diagnostic
• Cross Section - 35mm x 45mm x 1,301mm
• Fastening - Back Slot, Side Slot or to the Top and Lower End with optional Swivel Brackets
• Electrical Connections - M12 5-poles for Emitter - M12 8-poles for Receiver
• Protection Rating - IP 65
• Type 4 according to IEC/TS 61496-2
• SIL 3 – SILCL 3 according to IEC 61508 - IEC 62061
• PL e – Cat. 4 according to ISO 13849-1
