AX 602 - 24 Inch - 20mm MOS - Light Curtain

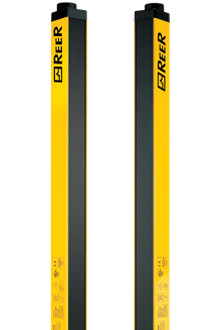

ReeR AX 602 Light Curtain Transmitter & Receiver Pair

• 24 inch
• 20mm MOS - Type 4 according to IEC/TS 61496-2
• Selectable 6M or 18M Maximum Range
• Power - 24 VDC - 2W Emitter - 3W Receiver
• Safety Outputs - 2 PNP-500 mA @ 24 VDC - Self Testing
• Response Time – 11.5 MS
• Selectable Manual or Automatic Start/Restart
• Seven-Segment Display and LEDs for Status and Diagnostic
• Cross Section - 35mm x 45mm x 711mm
• Fastening - Back Slot, Side Slot or to the Top and Lower End with optional Swivel Brackets
• Electrical Connections - M12 5-poles for Emitter - M12 8-poles for Receiver
• Protection Rating - IP 65
• Type 4 according to IEC/TS 61496-2
• SIL 3 – SILCL 3 according to IEC 61508 - IEC 62061
• PL e – Cat. 4 according to ISO 13849-1
