GLM Rope Switch - 2NC 2NO - QCM23 - Die-Cast w/E-Stop
Hover over image to zoom
IDEM
$297.00
SKU:
IDEM-143058-QCM23
Availability:
Stock to 2 Weeks
)
Questions about this Product? Call Us at
317-602-1472
Product Description

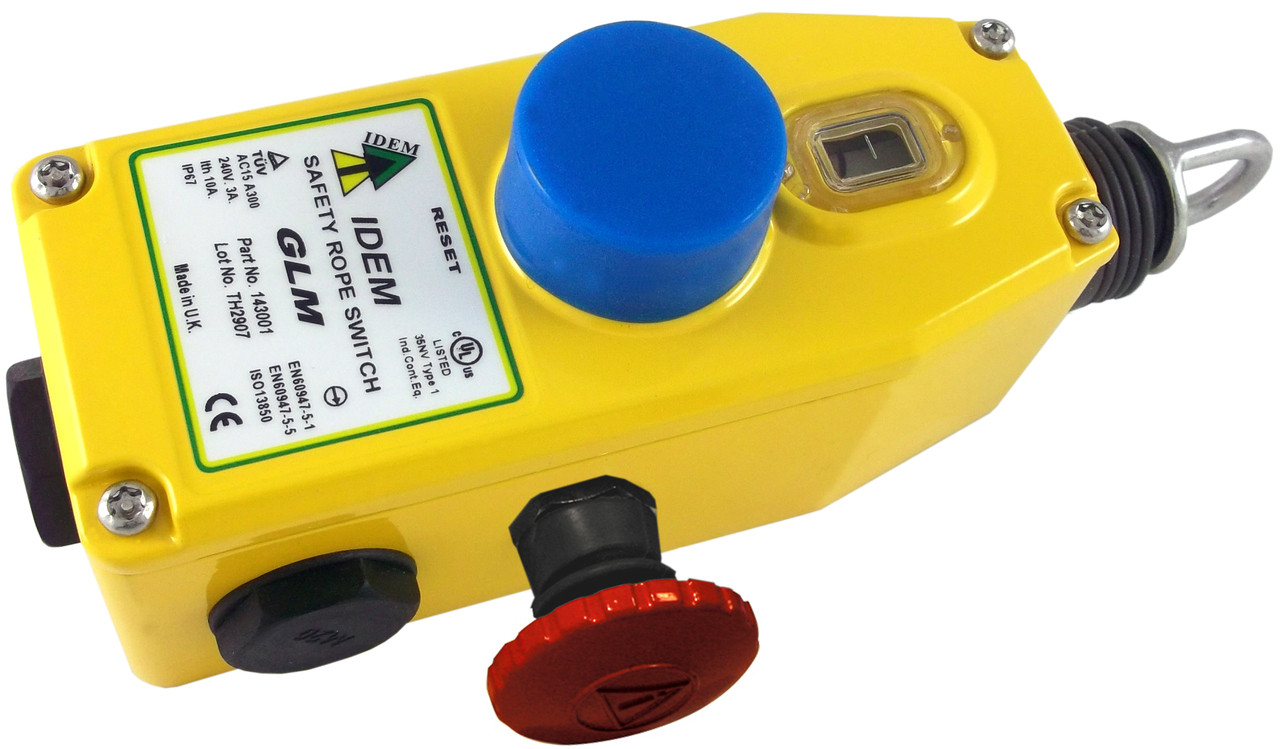

GLM – Mini Duty Rope Switch – Die-cast
- Contact Rating – 3 Amps @ 240 Volts
- Contacts – 2NC 2NO – Switch Reset
- Rope Span – 30M (98 Feet) Max.
- External Red Mushroom E-Stop Button
- Mounting – 4 x M5
- Enclosure / Cover – Die-cast Painted Yellow
- Conduit Entries – QCM23
- Safety Ratings – IEC 60947-5-1, IEC 60947-5-5, EN 954-1, ISO 13849-1, EN 62061, ISO 13850, UL 508
- Enclosure Rating – IP67 (NEMA 6)
- Full Specifications - Data Sheet
