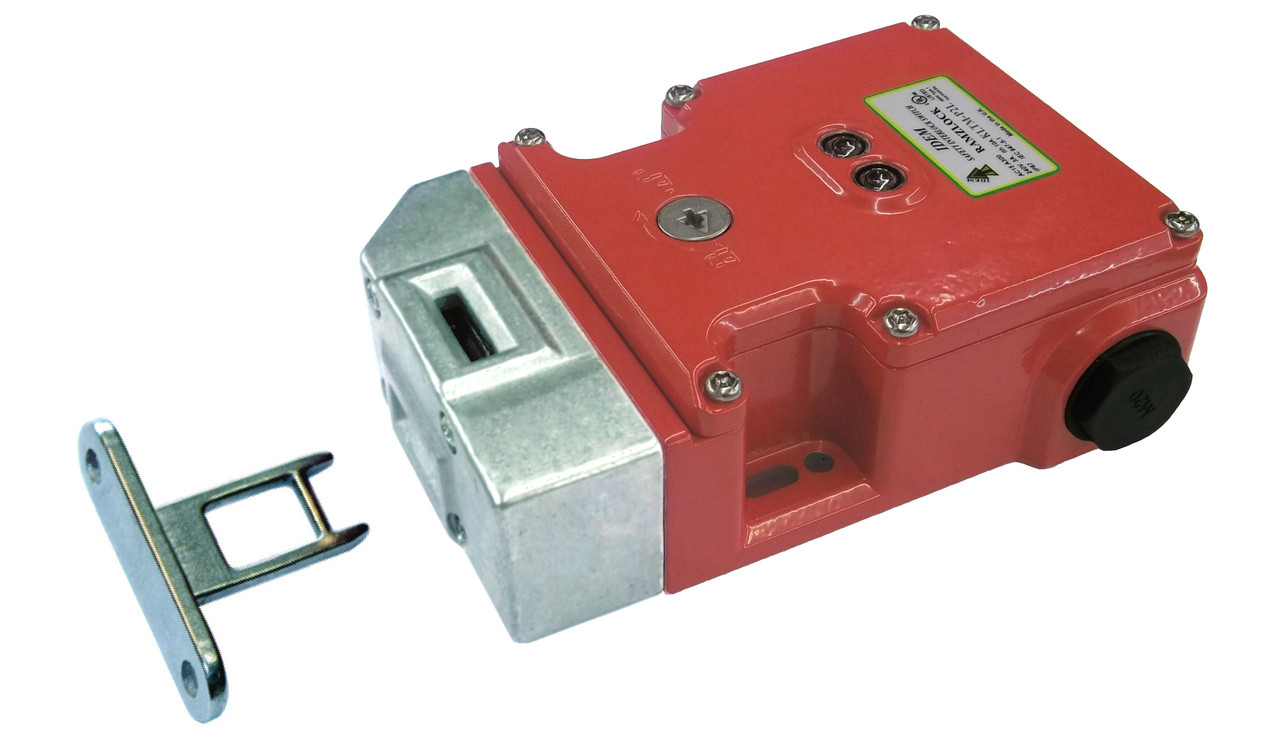

KLTM-RR - Locking Tongue Switch w/Rear Release - 4NC 2NO - 230 VAC - M20 - Die Cast

KLTM-RR – Locking Tongue Switch w/Rear Release – Die Cast w/SS Head

• Contact Rating – 3 Amps @ 240 Volts
• Contacts – 4NC Safety, 1 NO Actuator Status, 1 NO Lock Status - Tongue In

• Solenoid Voltage - 230 VAC
• Solenoid Wattage – 12 Watts

• LED 1 - Red Solenoid Status
• LED 2 - Green Lock status - 24 VDC
• Manual Release - Rear

• Mounting – 4 x M5
• Enclosure – Die-cast Painted Red

• Conduit Entries – 3 x M20

• Safety Ratings – EN 1088, IEC 60947-5-1, EN60204-1, ISO 13849-1, EN 62061, EN954-1, UL 508

• Enclosure Rating – IP67 (NEMA 6)
• Full Specifications - Data Sheet
