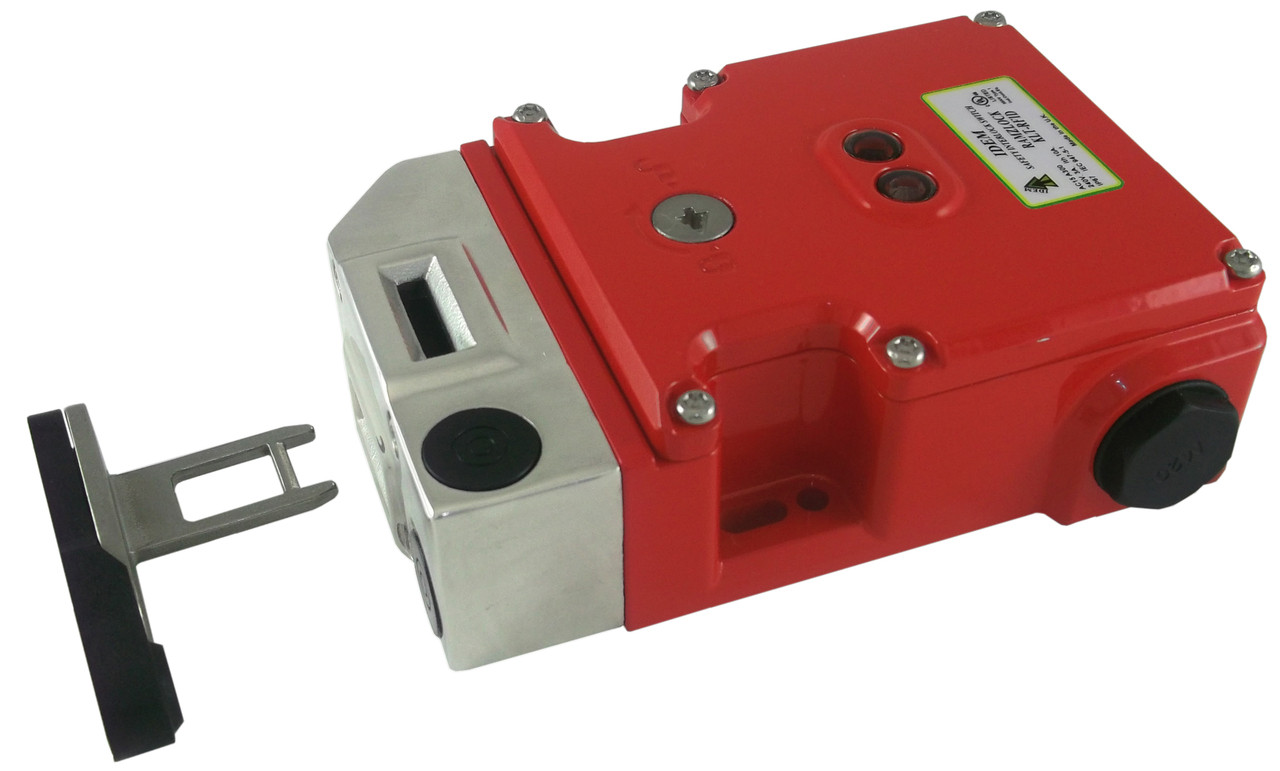

KLTM-RFID High Security Locking Tongue Switch - High Entry - 4NC 2NO - 24 VDC/AC - 1/2" NPT - Die-cast w/SS Head

KLTM-RFID– High Security Locking Tongue Switch – Die-cast w/SS Head - Unique Code Actuator Included

• Contact Rating – 3 Amps @ 240 Volts
• Contacts – 4NC Safety, 1 NO Actuator Status, 1 NO Lock Status - Tongue In

• Solenoid Voltage - 24 VDC/AC
• Solenoid Wattage – 12 Watts

• LED 1 - Red Solenoid Status
• LED 2 - Green Lock status - 24 VDC
• LED 2 - Yellow Fault
• Manual Release - Side & Lid

• Mounting – 4 x M5
• Enclosure – Die-cast Painted Red w/SS Head

• Conduit Entries – 3 x 1/2" NPT

• Safety Ratings – EN 1088, IEC 60947-5-1, EN60204-1, ISO 13849-1, EN 62061, EN954-1, UL 508

• Enclosure Rating – IP67 (NEMA 6)
• Full Specifications - Data Sheet
