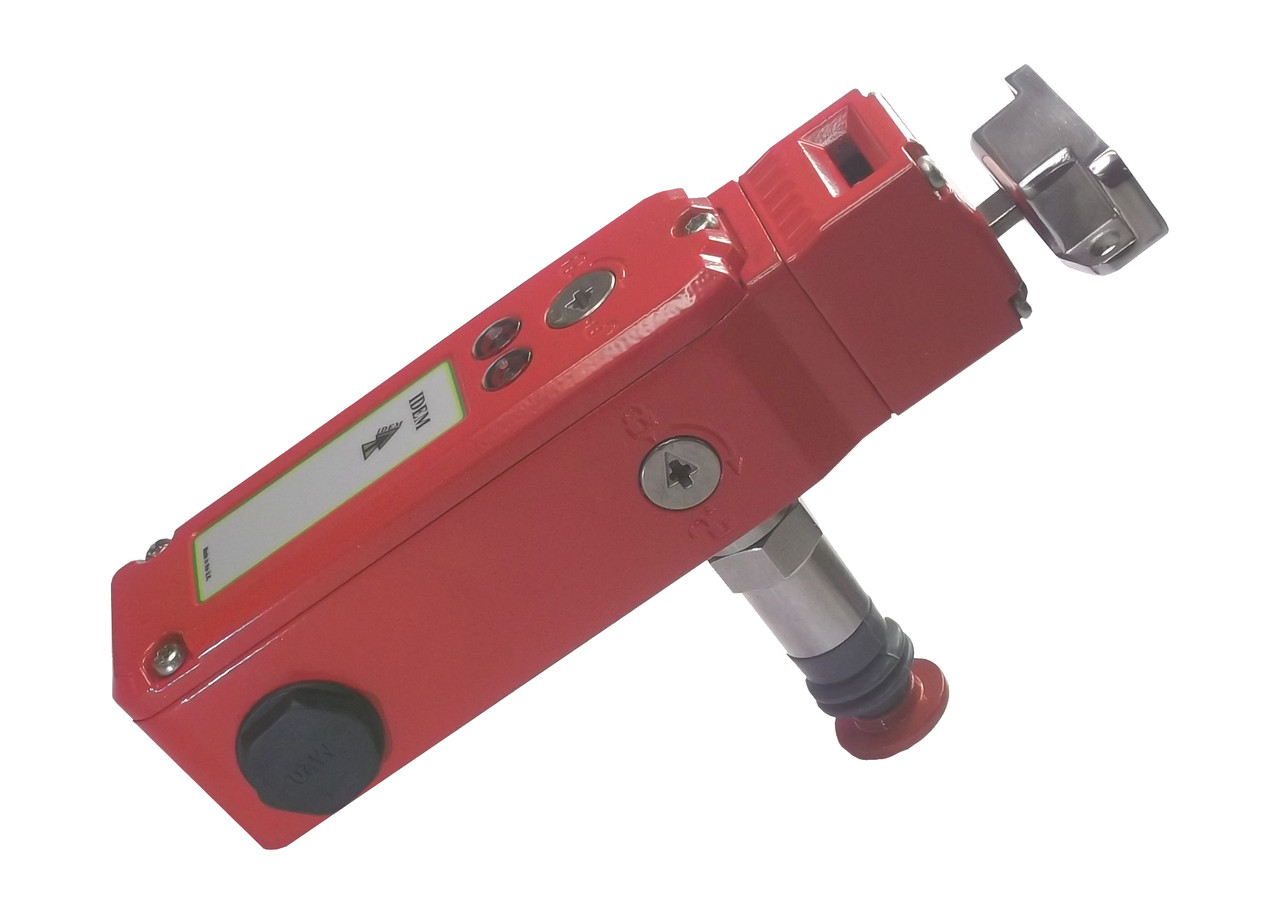

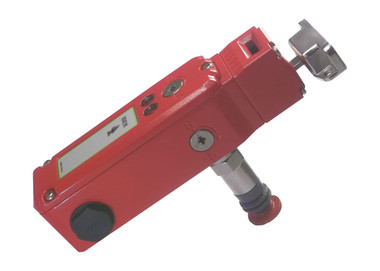

KLM-RR Rear Release Locking Tongue Switch - 4NC 2NO - 24 VDC/AC - QCM23 - Die-Cast

KLM-RR – Rear Release Locking Tongue Safety Switch – Die-cast

• Contact Rating – 3 Amps @ 240 Volts
• Contacts – 4NC Safety - 2NO Auxiliary - Tongue In

• Solenoid Voltage - 24 VDC/AC
• Solenoid Wattage – 12 Watts

• LED 1 - Solinoid Status
• LED 2 - Lock Status
• Manual Release - None

• Mounting – 4 x M5
• Enclosure / Cover – Die-cast Painted Red
• Conduit Entries – QCM23

• Safety Ratings – EN 954-1, ISO 13849-1, EN 62061
• Enclosure Rating – IP67 (NEMA 6)
• Full Specifications - Data Sheet
