IDEM - SLC-F-1040 - 41 Inch (1040mm) - 14mm MOS - Light Curtain
Hover over image to zoom
IDEM
$2,045.00
SKU:
IDEM-SLC-F-1040
Availability:
Stock to 4 Weeks
 - 14mm MOS - Light Curtain, $2,045.00 (https://safetycents.com/copy-of-idem-slc-f-1040-41-inch-1040mm-14mm-mos-light-curtain/))
Questions about this Product? Call Us at
317-602-1472
Product Description

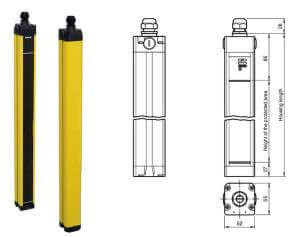

Idem SLC-F-1040 Safety Light Curtain Transmitter & Receiver Pair
- 1040mm (41")
- 14mm (1/2") MOS
- Range: 300mm to 10M (1' to 32')
- Power - 24 VDC - 2W Emitter - 3W Receiver
- Safety Outputs - 2 PNP/NPN Switch Select-able - 300 mA @ 24 VDC - Self Testing
- Response Time – 14 MS
- Select-able Manual or Automatic Start/Restart
- Safety Related Functions: EDM - Pre-Reset - Fixed/Float Blanking - Reduced Resolution - Muting/Override - Scan Code Selection
- Green - Red - Yellow - Blue LEDs for Status and Diagnostic
- Cross Section - 35mm x 45mm x 711mm
- Fastening - Back Slot, Side Slot w/Standard Fixed Brackets or optional Swivel Brackets
- Electrical Connections - M12 5-poles for Emitter - M12 8-poles for Receiver
- Protection Rating - IP 65 & IP 67
- Type 4 - IEC 61496-1 & -2
- PL e – Cat. 4 according to ISO 13849-1:2008
